Water Cooled Electric Motor - Professional High Voltage Solutions

The water cooled electric motor addresses these critical challenges through advanced liquid cooling technology. This specialized motor design circulates cooling water through an internal heat exchanger, eliminating the need for external cooling fans while maintaining optimal operating temperatures. Industries requiring reliable high-power drive systems—from cement plants to thermal power stations—increasingly rely on this technology to ensure continuous operation in demanding environments. Our YKS series delivers proven performance across applications where traditional cooling methods fall short.

Water Cooled Electric Motor Manufacturer and Supplier

Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. brings over 20 years of expertise in power equipment solutions. We maintain strategic partnerships with 30+ leading motor manufacturers including ABB, Siemens, Wolong, and XEMC. Our YKS series water-cooled high voltage motors feature IP54 protection, voltage ranges from 3000V to 11000V, and power outputs spanning 220-6300 kW.

All products comply with GB/T 1032 and GB/T 13957 standards. We hold CCC, CE, ISO9001:2000, CRCC, CQC, UL, and GOST certifications. Our SAP-managed production system ensures consistent quality from trusted component suppliers, including premium SKF, NSK, and FAG bearings available upon request.

Pain Points vs. Solutions

Your Challenges:

· Air-cooled motors overheat in enclosed workshops with poor ventilation

· Excessive fan noise disrupts operations in sound-restricted areas

· Dust accumulation clogs air ducts, causing frequent maintenance shutdowns

· Ambient temperature fluctuations reduce motor reliability during peak seasons

Our Water Cooling Solutions:

· Internal water coolers maintain stable temperatures regardless of external conditions

· Fanless design reduces operational noise by 60-70%

· Sealed housing prevents dust infiltration, extending service intervals

· Consistent heat dissipation enables full-load operation in 45℃ environments

Technical Advantages

The YKS series provides 20-25% more power density than the regular air-cooled motors. Our 800 frame size hits 6300 kw power - no more parallel motor options. The small design allows a simplified system architecture and fewer possible sources of failure.

The cooling system consists of corrosion-resistant aluminum alloy cores with watertight sealing. Salt spray testing for 1500+ hours confirms reliable performance for heat exchangers in coastal and chemical settings. Operating temperature range: -25℃~45℃ up to altitude 2000 meters

The direct heat transfer to the liquid allows thermal efficiency to be higher than air cooled counterparts. The temperature increase is negligible even in heavy-duty continuous cycles, therefore preserving the winding insulation and increasing the life of the motor by 30-40%.

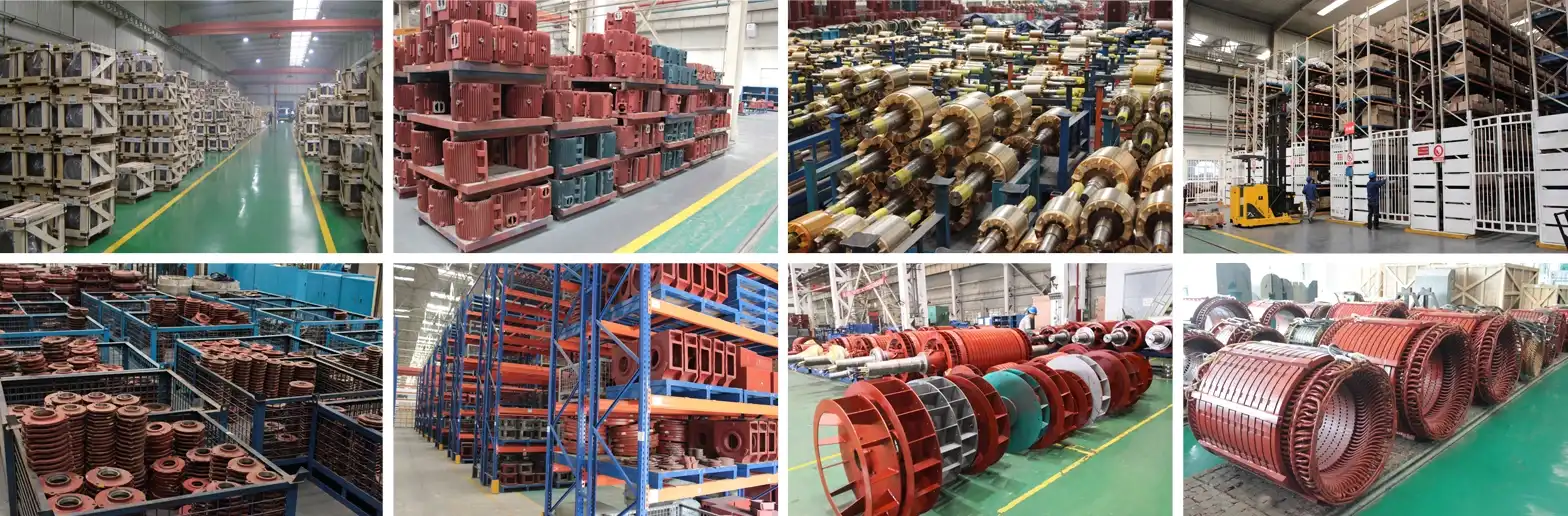

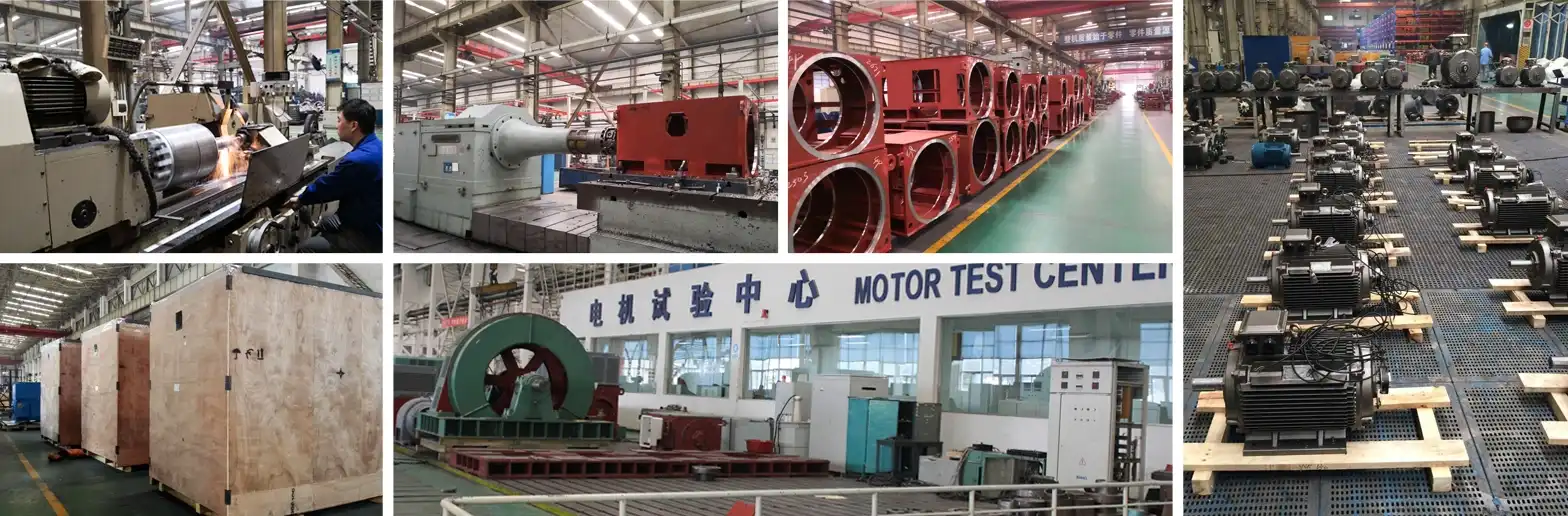

Production Process

Our manufacturing follows strict quality protocols:

1. Material Selection: Premium electrical steel and copper conductors from certified suppliers

2. Winding Assembly: Automated coil winding with vacuum pressure impregnation (VPI) treatment

3. Cooler Integration: Precision-machined heat exchangers undergo leak testing at 1.5x working pressure

4. Dynamic Balancing: Rotor balancing to ISO G2.5 standards, minimizing vibration

5. Performance Testing: Full-load heat run tests simulate actual operating conditions

6. Final Inspection: Insulation resistance, voltage withstand, and no-load current verification

Each unit receives individual test reports documenting electrical parameters and mechanical tolerances.​​​​​​​

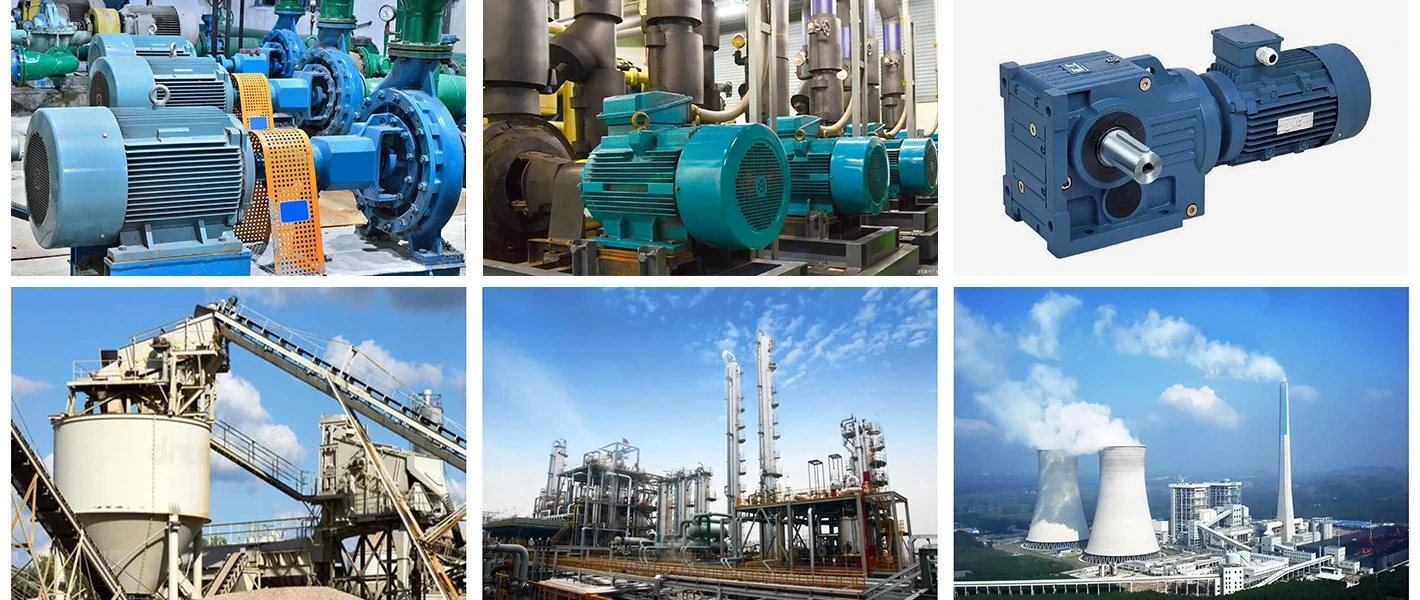

Industry Applications

Thermal Power & Nuclear Plants Circulating water pumps induced draft fans boiler feed pumps

Cement Production: Vertical raw mill, rotary kiln, high pressure fan

Main drives of rolling mills in the metallurgical industry, blast furnace fans, compressors in steel plants

Chemical Processing: Reactor agitators, huge centrifuges, process gas compressors

Mining Operations: Main shaft elevators, ventilation fans, slurry pumps

Water Treatment: High Capacity Pumps for Municipal and Industrial Plants

These applications benefit from the motor’s ability to work in dusty, high temperature or noise sensitive conditions.

Customization Capabilities

We water cooled electric motor tailor solutions to your specific requirements:

· Voltage Adaptation: Custom windings for non-standard voltages

· Mounting Configurations: Horizontal, vertical, or flange mounting options

· Shaft Extensions: Modified dimensions for direct coupling to driven equipment

· Cooling System: Fresh water or seawater-compatible materials selection

· Environmental Protection: IP55 or IP56 upgrades for outdoor installation

· Control Integration: Compatibility with VFD systems and automation protocols

Our engineering team evaluates your operating conditions and recommends optimal motor specifications, including brand, series, and model selection.

Reliability Testing & Certifications

Every motor undergoes rigorous validation:

· Type testing per IEC 60034 standards

· Temperature rise verification under continuous rated load

· Voltage surge testing to validate insulation integrity

· Vibration analysis ensuring compliance with ISO 20816

· Water pressure testing of cooling circuits

Our quality management systems hold ISO9001:2000 and environmental certifications. Products meet international market requirements through UL, GOST, and CE approvals.

Why Choose XCMOTOR

Complete Supply Chain: Original components from more than 30 manufacturers guarantee authenticity and availability.

Fast Delivery: Fast logistics with sea, land, air and multimodal transportation choices to fit your schedule.

Cost-Effective Solutions: Strategic collaborations allow us to provide excellent solutions at competitive prices.

Technical Support: Our professional staff offers pre-sales consulting, installation support and quick after-sales feedback.

Flexible Returns: 30-day open buy policy and 365 days a year assistance including weekends.

Getting you operational success starts with quick service and excellent goods.

FAQ

Q：What is YKS water-cooled high voltage motor?

A：YKS series are box-type water-cooled high voltage three-phase squirrel-cage aSynchronous Motors with rated voltage of 6kV/10kV. A built-in water cooler inside the frame dissipates heat through circulating cooling water without exposed cooling fans. It is suitable for closed, dusty and noise-restricted workshops, widely used for high-power continuously-operated equipment.

Q：What are the core advantages of water cooling compared with air-cooled HV motors?

A：Higher cooling efficiency with smaller size and lower temperature rise under the same power. No axial cooling fan, greatly reducing operating noise. No dust accumulation in air ducts, suitable for severe dusty conditions such as cement, chemical and mining industries. Heat dissipation is not affected by ambient temperature, enabling stable full-load operation in high-temperature workshops. Better overall tightness to avoid winding short circuit caused by dust accumulation.

Q：Which industries and equipment is YKS water-cooled high voltage motor applied to?

A：Mainly applied in thermal power, nuclear power, chemical, metallurgy, cement and large pump stations, matched with boiler induced draft fans, circulating water pumps, main air compressors, vertical raw material mills and large steel rolling equipment. Ideal for underground machine rooms, closed workshops and areas with strict noise and dust control requirements.

Q：What causes abnormal overheating of YKS water-cooled motor?

A：Common causes include insufficient cooling water flow or excessively high inlet water temperature, scale accumulation inside water cooler blocking pipeline and reducing heat exchange efficiency, incompletely opened water valves or folded pipelines causing flow restriction, long-term motor overload operation, and water circuit leakage leading to dry burning of the cooler.

Q：What regular maintenance items are required for YKS water-cooled high voltage motor?

A：Test cooling water flow and temperature difference regularly, conduct acid cleaning to remove scale periodically. Check water cooler and pipe joints for water leakage. Replace bearing lubricating grease on schedule, monitor bearing temperature and vibration. Measure insulation resistance and DC resistance of high voltage windings annually. Clean high voltage terminal box and fasten terminals. Inspect frame tightness during shutdown to avoid water vapor penetrating windings.
